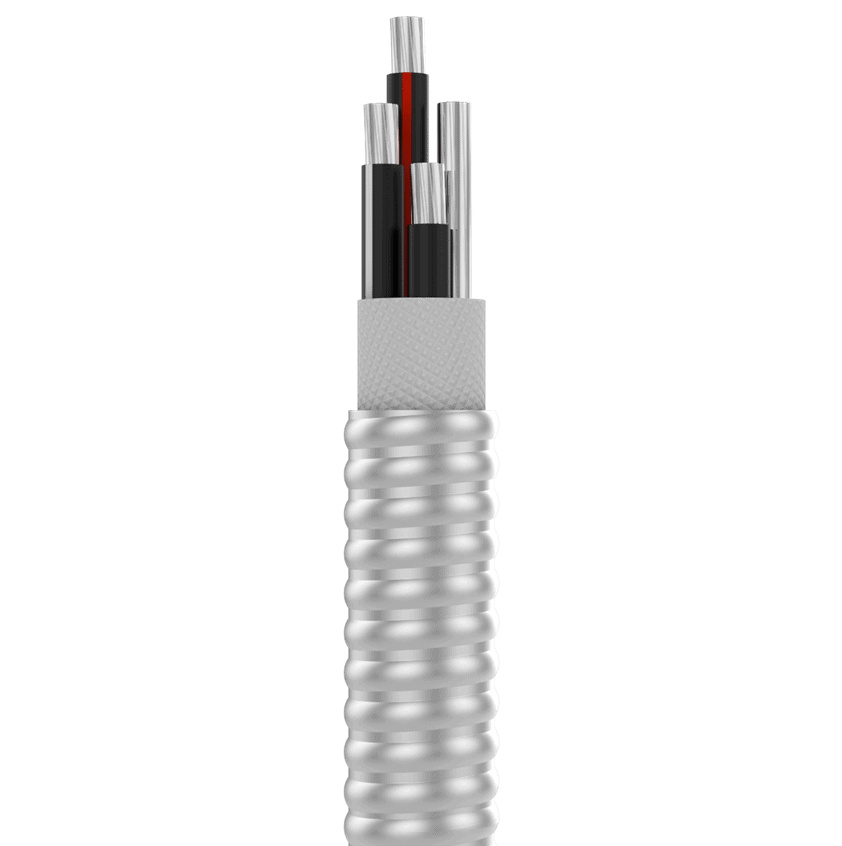

Three or Four Conductor UL Type MC, Aluminum Conductor, THHN / THWN-2, AIA, 90°C Dry, Rated 600 V

Home Products Type MC Armored Cables Three or Four Conductor UL Type MC, Aluminum Conductor, THHN / THWN-2, AIA, 90°C Dry, Rated 600 V

ALUMINUM BUILDING WIRE

Type MC Armored Cables

Utility Aluminum Cables

Bare Aluminum Cables

Service Drop Cables (Overhead)

Aluminum Service Drop Cables - Duplex

Aluminum Service Drop Cables - Triplex

Aluminum Service Drop Cables - Quadruplex

Aluminum URD Cables (Underground)

Medium Voltage Cables

Select a section

UL Type MC cables with THHN / THWN-2 conductors are primarily used for services, feeders and branch circuits in commercial and residential applications in accordance with the NEC. Suitable applications include for indoor power and lighting circuits, exposed or concealed, cable tray, raceway (conduit) and embedded in plaster or in contact with masonry. The cable is suitable for dry locations only at temperatures not to exceed 90°C. The cable is rated 600 V.

Conductors:
Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation:
Low coefficient of friction, abrasion, moisture, and heat resistant colored polyvinyl chloride (PVC).
Covering:
Low coefficient of friction, abrasion, moisture, and heat resistant translucent Nylon polyamide.
Assembly:
Cabled assembly with an equipment grounding conductor and a binder tape overall. A
Armor:
Aluminum Interlocked Armor (AIA).

Three Conductors: Black, Black with Red Stripe, Black with White Stripe
Four Conductors: Black, Black with Red Stripe, Black with Blue Stripe, Black with White Stripe

600 V

Temperature Rating
90°C	Dry

ASTM B800 -- 8000 Series Aluminum Alloy Wire for Electrical Purposes—Annealed and Intermediate Tempers
ASTM B801 -- Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation
UL 83 -- Thermoplastic-Insulated Wires and Cables
UL 1479 -- Fire Tests of Through-Penetration Firestops
UL 1569 -- Metal-Clad Cables.
ICEA S-95-658 / NEMA WC70 -- Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
Federal Specification J-C-30B

Nada Filipovic

Notes:

Dimensions and weights are subject to standard manufacturing tolerances and are subject to change without notice.
