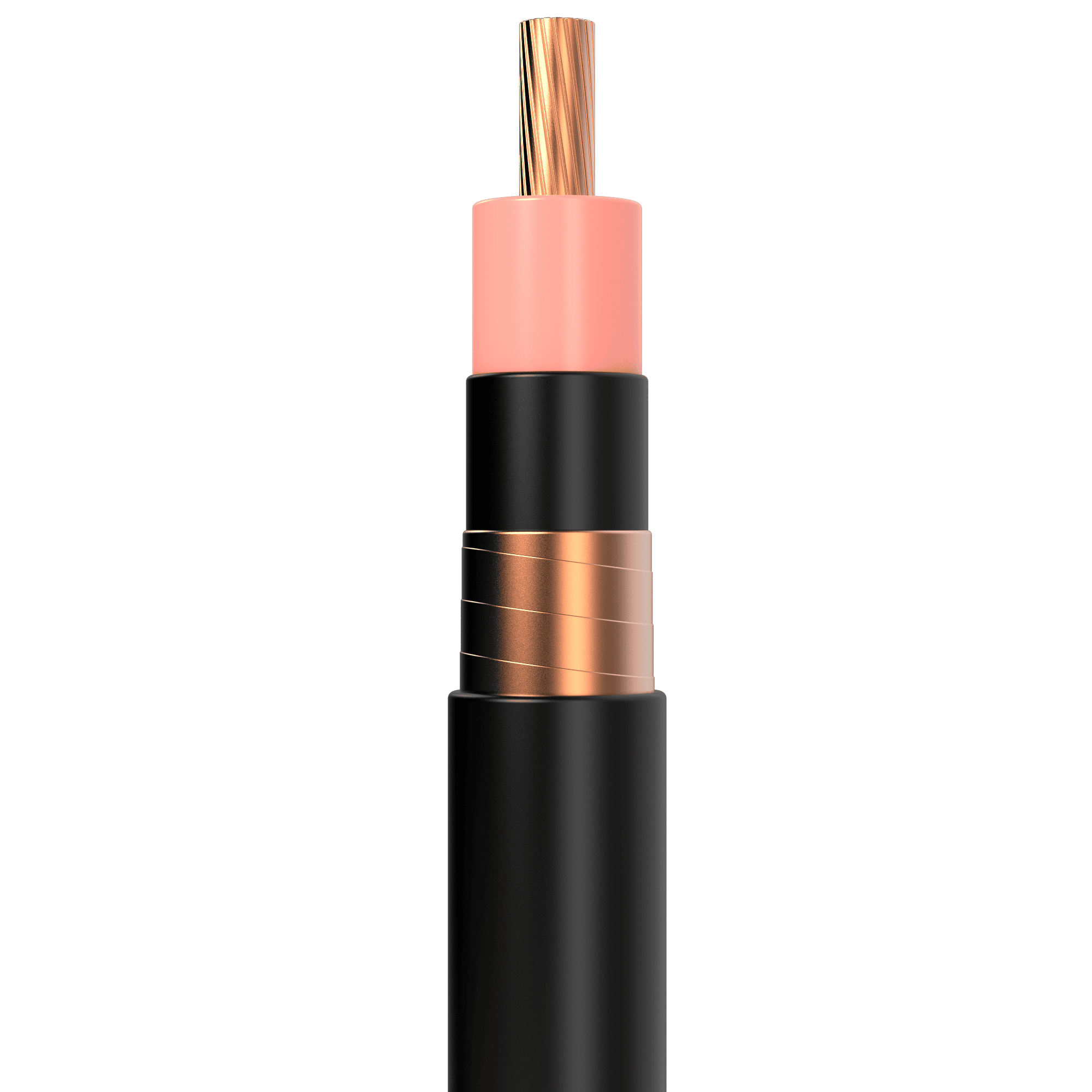

UL Type MV-105 Ampacities - Copper Conductors - Rated 5 kV, 8 kV or 15 kV

Home Products Medium Voltage Cables UL Type MV-105 Ampacities – Copper Conductors – Rated 5 kV, 8 kV or 15 kV

UL Type MV-105 Ampacities – Copper Conductors – Rated 5 kV, 8 kV or 15 kV

Aluminum Building Wire

Type MC Aluminum Armored Cables

Utility Aluminum Cables

Aluminum URD Cables (Underground)

Service Drop Cables (Overhead)

Aluminum Service Drop Cables - Quadruplex

Aluminum Service Drop Cables - Triplex

Aluminum Service Drop Cables - Duplex

Bare Aluminum Cables

SO Portable Cord Cables

Medium Voltage Cables

Applications

Construction

Conductor

Conductor Shield

Conductor Identification

Insulation

Insulation Shield

Metallic Shield

Outer Jacket

Physical Properties of PVC Jacket

Voltage Rating

Temperature Ratings

Minimum Bending Radius

Ratings and Markings

Standards

Listings and Certifications

Packaging

Ampacities

Applications

Construction

Conductor

Conductor Shield

Conductor Identification

Insulation

Insulation Shield

Metallic Shield

Outer Jacket

Physical Properties of PVC Jacket

Voltage Rating

Temperature Ratings

Minimum Bending Radius

Ratings and Markings

Standards

Listings and Certifications

Packaging

Ampacities

Conductor Size (AWG or kcmil)	Ampacity
Conductor Size (AWG or kcmil)	Direct Buried (Touching)	Direct Buried (Spaced 7.5 in)	In Conduit Air (Touching)	In Cable Tray (Spaced One Cable Diameter)
2	205	225	165	-
1	230	260	190	-
1/0	260	295	215	290
2/0	295	335	255	330
3/0	340	380	290	380
4/0	385	435	330	445
250	410	475	365	490
350	505	575	440	605
500	605	700	535	755
750	740	865	655	970
1000	830	1005	755	1160

Show

entries.

Notes:

Dimensions and weights are subject to standard manufacturing tolerances and are subject to change without notice.

Conductor Size (AWG or kcmil)	Diameter
Conductor Size (AWG or kcmil)	Direct Buried (Touching)	Direct Buried (Spaced 7.5 in)	In Conduit Air (Touching)	In Cable Tray (Spaced One Cable Diameter)
2023 NEC Article	Article 315.60(F)	Article 315.60(F)	Article 315.60(E)	Article 392.80(B)(2)(2)
2023 NEC Table	Table 315.60(C)(19), One Circuit	Table 315.60(C)(15), One Circuit	Table 315.60(C)(7)	Table 315.60(C)(3)
Cable Configuration	2023 NEC Figure 315.60(D)(3), Detail 7	2023 NEC Figure 315.60(D)(3), Detail 9	Touching	Single Layer, Spaced One Cable Diameter
Installation Conditions	Earth Ambient = 20 deg C (68 F) Earth Thermal Resistivity = 0.90 deg C m / W Depth of Burial = 36 in	Earth Ambient = 20 deg C (68 F) Earth Thermal Resistivity = 0.90 deg C m / W Depth of Burial = 36 in	Ambient Air = 40 deg C (104 F)	Ambient Air = 40 deg C (104 F)
