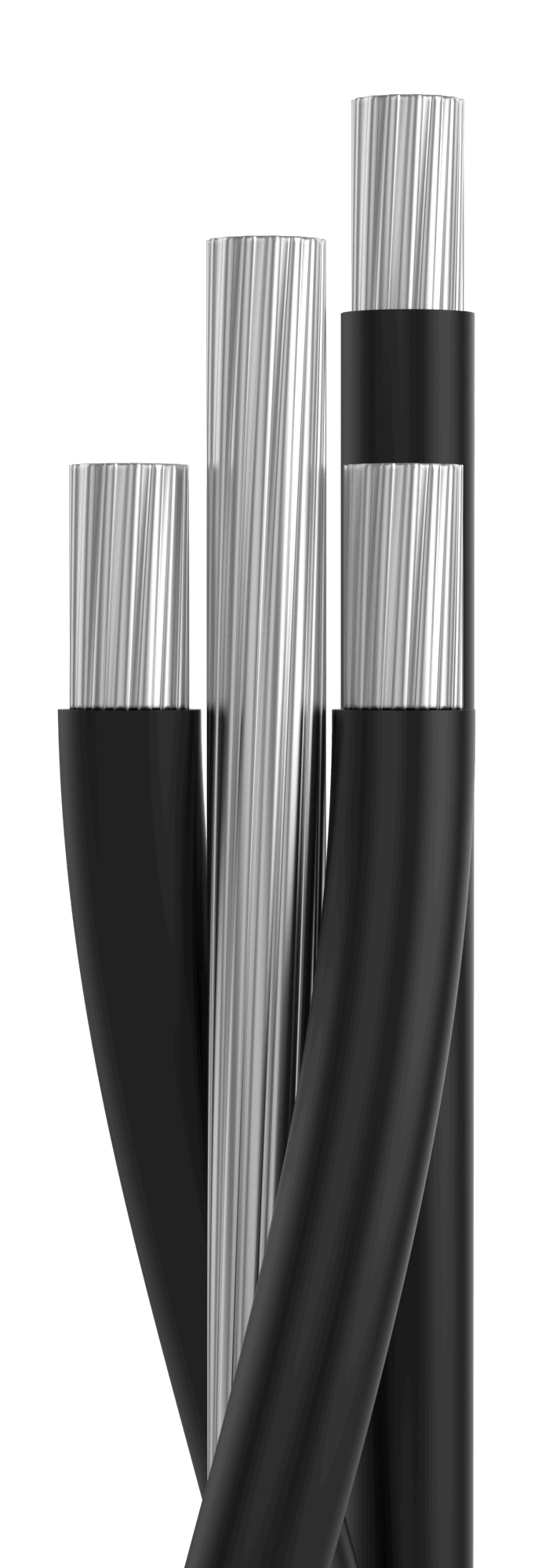

Service Drop Quadruplex, AAAC Messenger, 1350 Aluminum Conductors, 90°C Dry or Wet, Rated 600 V

ALUMINUM BUILDING WIRE

Type MC Armored Cables

Utility Aluminum Cables

Bare Aluminum Cables

Service Drop Cables (Overhead)

Aluminum Service Drop Cables - Duplex

Aluminum Service Drop Cables - Triplex

Aluminum Service Drop Cables - Quadruplex

Aluminum URD Cables (Underground)

Medium Voltage Cables

Select a section

Used for secondary distribution and overhead service entrance at 600 V or less, rated 90°C dry or wet, sunlight resistant.

Phase Conductors:
Compact stranded All Aluminum Conductor (AAC) 1350.
Insulation:
Sunlight resistant Cross-Linked Polyethylene (XLPE).
Neutral or Messenger:
Concentric stranded bare All Aluminum Alloy Conductor (AAAC) 6201-T81.
Assembly:
Twisted assembly of 3 insulated phase conductors around 1 bare neutral or messenger conductor.

600 V

Temperature Rating
90°C	Dry or Wet

ASTM B230 -- Aluminum 1350–H19 Wire for Electrical Purposes
ASTM B231 -- Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B398 -- Aluminum-Alloy 6201-T81 and 6201-T83 Wire for Electrical Purposes
ASTM B399 -- Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ASTM B400 -- Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
ICEA S-76-474 -- Neutral Supported Power Cable Assemblies with Weather Resistant Extruded Insulation Rated 600 Volts

Nada Filipovic

Notes:

Dimensions and weights are subject to standard manufacturing tolerances and are subject to change without notice.
