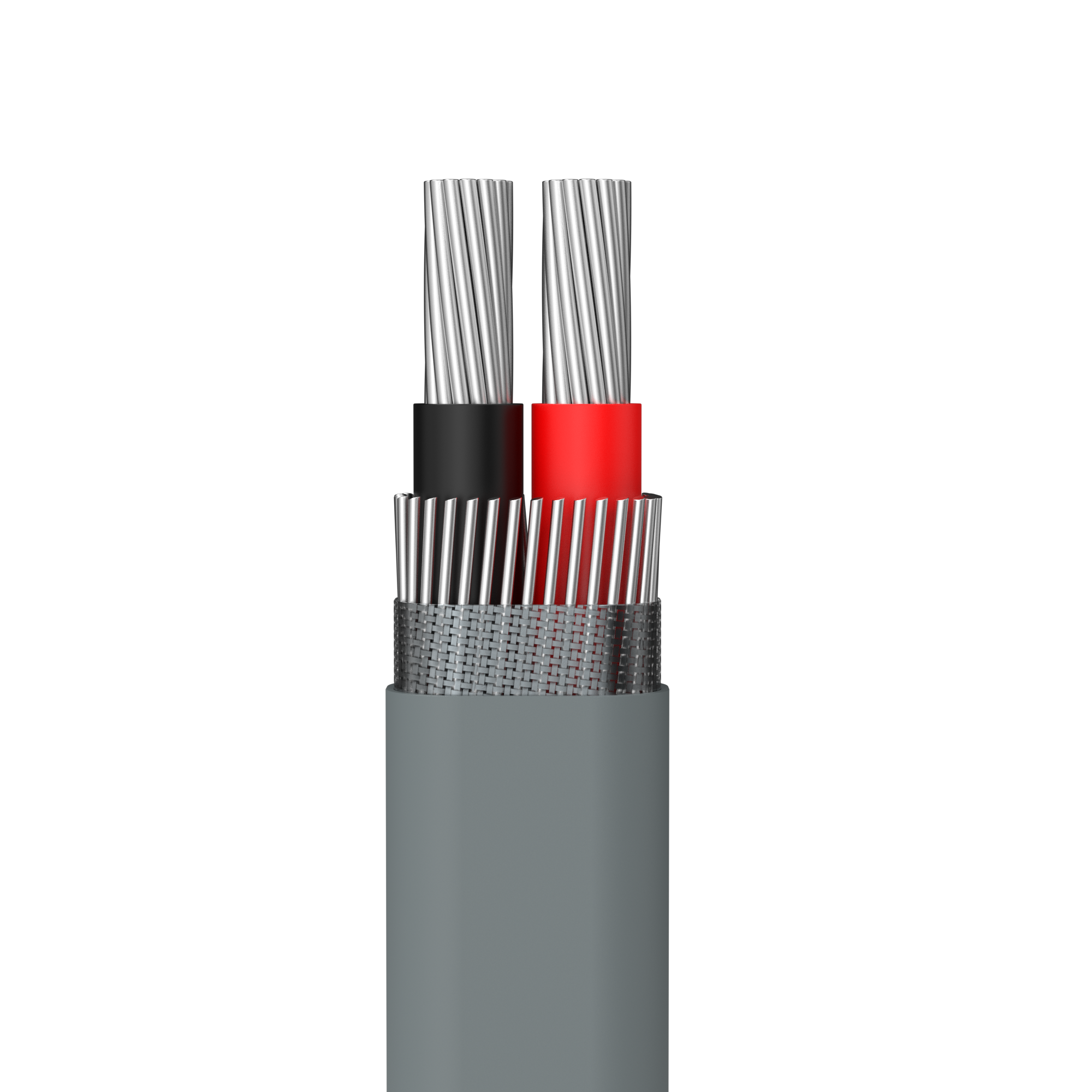

SN7_UL Type SE Style U, Aluminum UL Type XHHW Conductors, 90°C Dry or Wet, Rated 600 V

Home Products ALUMINUM BUILDING WIRE SN7_UL Type SE Style U, Aluminum UL Type XHHW Conductors, 90°C Dry or Wet, Rated 600 V

T7_UL Type SE Style U, Aluminum UL Type XHHW Conductors, 90°C Dry or Wet, Rated 600 V

ALUMINUM BUILDING WIRE

Type MC Armored Cables

Utility Aluminum Cables

Bare Aluminum Cables

Service Drop Cables (Overhead)

Aluminum Service Drop Cables - Duplex

Aluminum Service Drop Cables - Triplex

Aluminum Service Drop Cables - Quadruplex

Aluminum URD Cables (Underground)

Medium Voltage Cables

Select a section

Classic Wire UL Type SE, Style U cables are used as an above ground service entrance cable, panel feeder and in branch circuits in accordance with NEC Article 338. The conductor is suitable for use in dry or wet locations at temperatures not to exceed 90°C. The cable is rated 600 V.

Conductors:
Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation:
Abrasion, moisture, and heat resistant color coded crosslinked polyethylene (XLPE), UL Type XHHW.
Assembly:
Solid bare wires are helically applied over a pair of parallel insulated conductors. A flame retardant fiberglass reinforced binder tape assembles the core in a flat configuration.
Tape and Finish Covering:
Sunlight resistant, RoHS compliant, flame retardant, gray polyvinyl chloride (PVC) material.

600 V

ASTM B800 -- 8000 Series Aluminum Alloy Wire for Electrical Purposes—Annealed and Intermediate Tempers
ASTM B801 -- Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation
UL 44 -- Thermoset-Insulated Wires and Cables
UL 854 -- Service-Entrance Cables
ICEA S-95-658 / NEMA WC70 -- Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
Federal Specification AA-59544
Federal Specification JC-30B

Phuc Truong

Notes:

Dimensions and weights are subject to standard manufacturing tolerances and are subject to change without notice.
